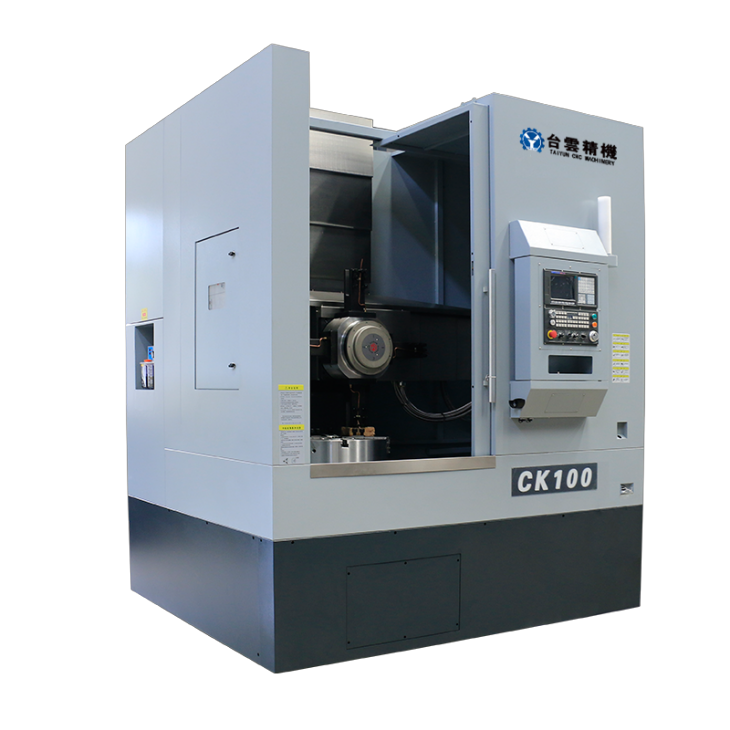

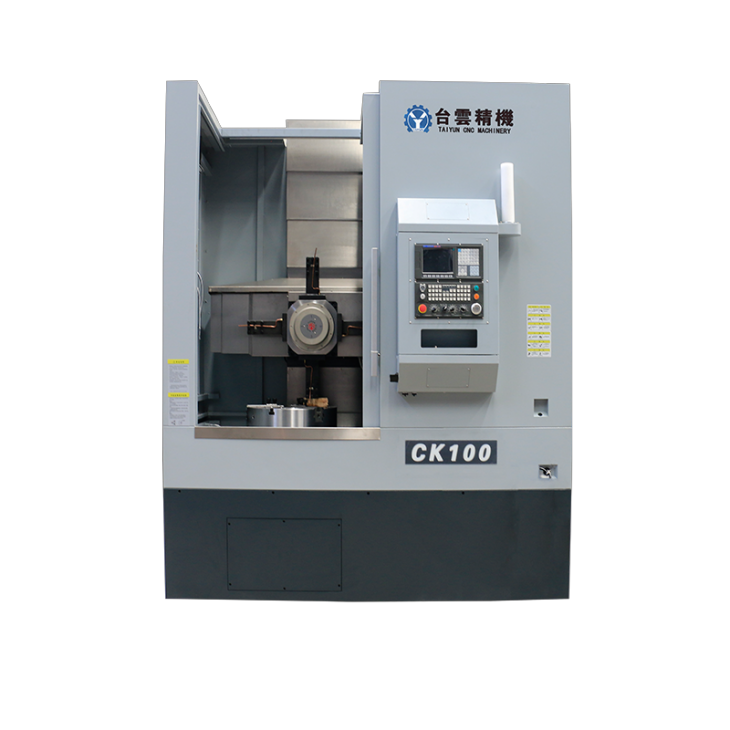

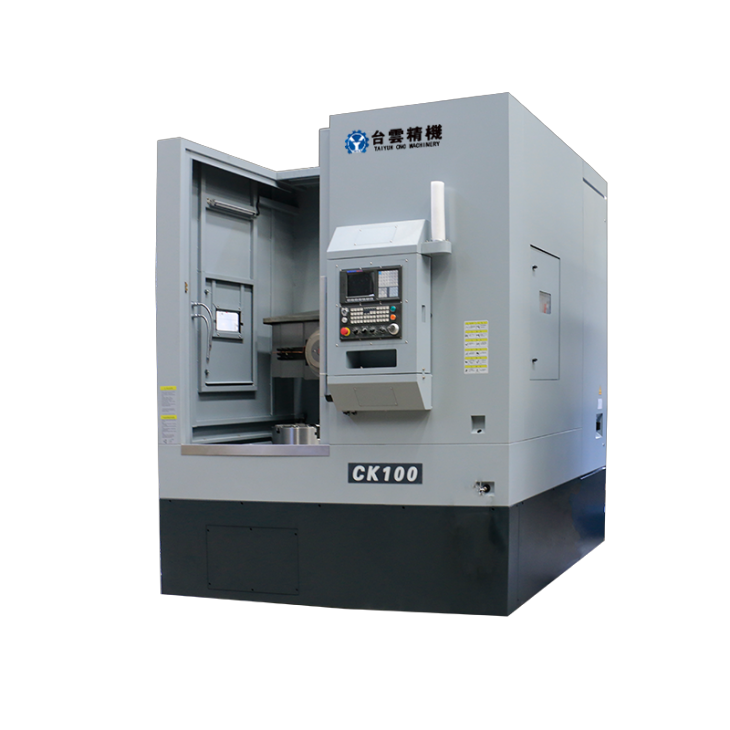

CNC vertical lathe for metal processing
CNC vertical lathe for metal processing is a kind of high-efficiency and high-precision machine tool equipment, which is mainly used for cutting and processing of metal materials....
CNC vertical lathe for metal processing is a kind of high-efficiency and high-precision machine tool equipment, which is mainly used for cutting and processing of metal materials. It has the following characteristics:
1. High degree of automation: CNC vertical lathe controls various parts of the machine tool, such as spindle, feed system, tool holder, etc., through computer programs to realize automatic processing. This can reduce manual operation and improve processing efficiency.
2. High processing accuracy: CNC vertical lathe adopts advanced CNC system and servo drive technology to achieve high-precision processing. The processing accuracy of CNC vertical lathe for metal processing can generally reach 0.001mm level, which meets the processing requirements of high-precision parts.
3. Wide processing range: CNC vertical lathe can process various metal materials, such as steel, iron, aluminum, copper, etc. At the same time, CNC vertical lathe for metal processing can also process parts of different shapes and sizes, such as shafts, discs, gears, etc.
4. High processing efficiency: CNC vertical lathe can achieve high-speed cutting, and support the processing of multiple processes at one time, thereby improving processing efficiency. In addition, it can also be intelligently optimized according to processing requirements to further improve processing efficiency.
5. High reliability: CNC vertical lathe adopts high-quality materials and manufacturing process, with high stability and reliability. At the same time, it is also equipped with various safety protection devices to ensure the safety of operators.
CNC vertical lathes for metal processing are widely used in automobile manufacturing, aerospace, mold manufacturing and other fields. In the field of automobile manufacturing, CNC vertical lathes for metal processing can be used to process various bearings, gears, precision parts, etc.; in the field of aerospace, CNC vertical lathes for metal processing can be used to process aircraft parts, engine parts, etc.; in the field of mold manufacturing, CNC vertical lathes for metal processing can be used to process various molds and mold accessories.
In short, CNC vertical lathes for metal processing are a kind of high-efficiency, high-precision and high-reliability machine tool equipment, which is of great significance to improving the production efficiency and product quality of the metal processing industry.
Specification | unit | CK100 | Specification | unit | CK100 |
X axis | mm | 580 | Tool holder form | Vertical four-station | |
Z axis | mm | 800 | Ball screw accuracy | C3 level | |
Maximum turning diameter | mm | Φ1000 | Lead Screw Size | X:Φ40*10mm Z:Φ50*10mm | |
turning diameter | mm | Φ1000 | X direction motor | 15NM | |
turning height | mm | 800 | Z direction motor | 18NM | |
Spindle speed | rpm | 100-800 | Spindle motor | 22Kw/375rpm | |
Spindle motor power | Kw | 22Kw/375rpm | RS-232 transmission interface and USB interface | RS-232 | |
Spindle diameter | mm | Φ160 | X/Zaxis rapid feed rate | 8m/min | |
Chuck type | hydraulic chuck | positioning accuracy | mm | ±0.012 | |
Chuck Specifications | 24 inches | Repeatability | mm | ±0.008 | |
Tool holder form | Vertical four-station | Dimensions (approx.) | mm | 2600*2600*3500mm | |
Ball screw accuracy | C3 level | equipment weight | kg | 7500 | |
Lead Screw Size | X:Φ40*10mm Z:Φ50*10mm |
