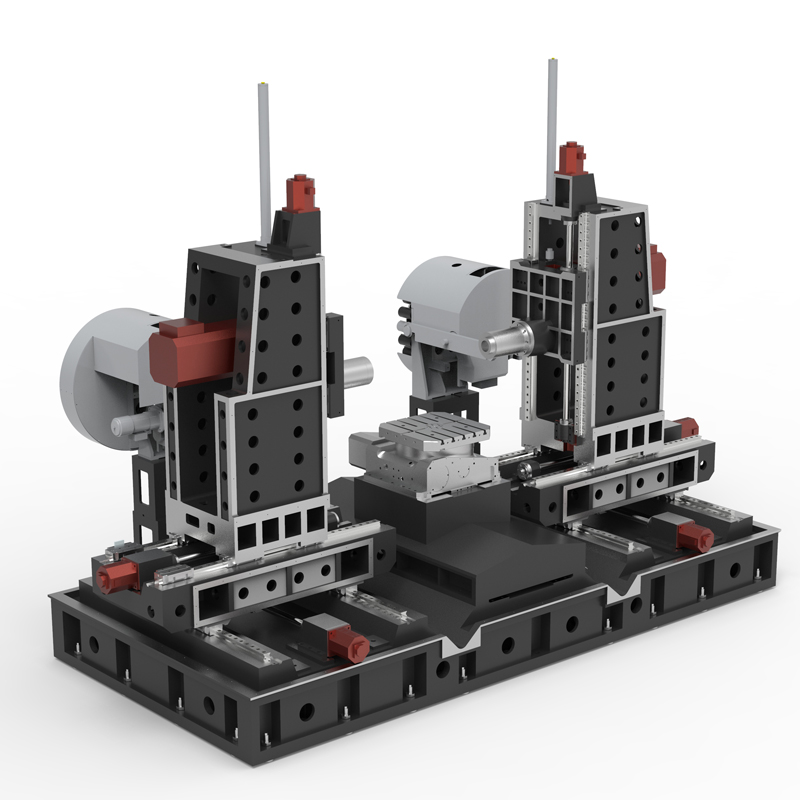

Horizontal machining center metal cutting machine tool
A horizontal machining center is a metal cutting machine tool usually used for metal processing, which is characterized by the fact that the workpiece is processed in the horizontal direction....
A horizontal machining center is a metal cutting machine tool usually used for metal processing, which is characterized by the fact that the workpiece is processed in the horizontal direction. The following are some features and uses of horizontal machining center metal cutting machine tools:
1. Horizontal workbench: The workbench of the horizontal machining center is placed horizontally, the workpiece is clamped on the workbench, and the spindle is processed in the horizontal direction. It is suitable for processing long and flat workpieces.
2. Multi-axis processing: Horizontal machining centers usually have multi-axis processing capabilities, which can realize a variety of processing operations, such as milling, drilling, tapping, etc., and can complete the processing of complex parts.
3. High-precision machining: Horizontal machining centers are equipped with high-precision CNC systems and rigid machine tool structures, which can achieve high-precision metal processing and meet processing tasks that require high dimensional accuracy and surface quality.
4. High-efficiency processing: The horizontal machining center has high-speed cutting and rapid tool change systems, which can improve processing efficiency, shorten the processing cycle, and reduce production costs.
5. Wide range of applications: Horizontal machining centers are suitable for processing various metal materials such as steel, aluminum alloys, copper, plastics, etc., and can be used in mold manufacturing, aerospace, automotive parts and other fields.
6. Flexibility: The horizontal machining center has a larger workbench and working area, can process workpieces of various sizes and shapes, and has strong processing flexibility.
7. Automated production: Horizontal machining centers, combined with automation devices and intelligent control systems, can realize automated production and improve production efficiency and production quality.
In general, horizontal machining center metal cutting machine tools are high-precision, high-efficiency metal processing equipment that are widely used in various processing tasks in modern manufacturing.
Specifications/model | Unit | WHH50 | WHH63 | WHH80 | WHH100 |
Work content | |||||
Turntable table size WHA | MM | 500×500 | 630×630 | 800×800 | 1000×1000 |
Fixed table size WHF (optional) | MM | 1000×500 | 1300×600 | 1300×600 | 1600×1000 |
Number of worktables (optional translational double work) | N | Single/Double | Single/Double | Single/Double | Single/Double |
Workbench indexing (standard) | N | 1 degree 1 minute | 1 degree 1 minute | 1 degree 1 minute | 1 degree 1 minute |
Workbench (optional) | N | Other graduations can be customized | Other graduations can be customized | Other graduations can be customized | Other graduations can be customized |
Maximum rotation diameter of worktable | MM | 1000 | 1300 | 1300 | 1600 |
X1.X2 axis travel | MM | 800 | 1000 | 1000 | 1300 |
Y1.Y2 axis travel (spindle item moves up and down) | MM | 700 | 700 | 700 | 700 |
Z1.Z2 axis stroke | MM | 500 | 900 | 900 | 900 |
Distance from spindle center to worktable | MM | 110-810 | 110-810 | 110-810 | 110-810 |
Distance from spindle end face to worktable center | MM | 200-700 | 200-1100 | 200-1100 | 200-1100 |
T-shaped workbench (slot width * number of slots) | MM | 22-3 | 22-3 | 22-5 | 22-5 |
Workbench load-bearing | KG | 2000 | 2500 | 3200 | 5000 |
Spindle and spindle box specifications | |||||
Spindle taper hole (model/installation dimensions) | ISO | BT40-150 | BT50-190 | BT50-190 | BT50-190 |
Spindle speed mark (optional) | RPM | 4000/8000/12000 | 4000/6000 | 4000/6000 | 4000/6000 |
Feeding system | |||||
X.Y.Z axis screw specifications | MM | 40/40/40 | 50/50/50 | 50/50/50 | 63/50/50 |
X-axis rapid movement speed | M/MIN | X:48 | X:32 | X:32 | X:24 |
Y-axis rapid movement speed | M/MIN | Y:48 | Y:32 | Y:32 | Y:24 |
Z-axis rapid movement speed | M/MIN | Z:48 | Z:32 | Z:32 | Z:24 |
X/Y/Z axis wire gauge specifications | MM | Roller 45/45/45 | Roller 55/55/55 | Roller 55/55/55 | Roller 55/55/55 |
X/Y/Z motor connection method | / | direct connection | direct connection | direct connection | direct connection |
main motor power | KW | 11 | 18.5 | 18.5 | 18.5 |
X-axis motor power | NM | 22/22B/22 | 27/27B/27 | 27/27B/27 | 30/30B/30 |
B-axis motor power | NM | B:8 | 12 | 12 | 22 |
Axis positioning accuracy | MM | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
Axis item repeat positioning accuracy | MM | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 |
BPositioning accuracy | MM | 8” | 8” | 8” | 8” |
B Repeat positioning accuracy | MM | 5” | 5” | 5” | 5” |
Minimum move value | MM | 0.001 | 0.001 | 0.001 | 0.001 |
Oil and gas pressure system | |||||
air pressure | KG | 7 | 7 | 7 | 7 |
coolant capacity | L | 550 | 650 | 650 | 850 |
Lubricating oil capacity L | L | 4 | 4 | 4 | 4 |
Toolholder/Tool Magazine System (specify when ordering) | |||||
Tool magazine structure | / | Robotic arm | Robotic arm | Robotic arm | Robotic arm |
Number of tool magazines | T | 24 | 24 | 24 | 24 |
Tool changing time T-T | MM | 3 | 7 | 7 | 7 |
Maximum tool weight | KGS | 8 | 12 | 12 | 12 |
Form factor | |||||
Weight approx. | KG | 10/11 | 19/20 | 21/22 | 28/30 |
Machine length | MM | 5500 | 7500 | 7500 | 9500 |
Machine width | MM | 3800 | 4500 | 4500 | 5500 |
Machine height (maximum) | MM | 3300 | 3700 | 3700 | 4200 |
Machine height (minimum) | MM | 3000 | 3300 | 3300 | 3600 |
Chip removal method | / | win screw + single chain plate | win screw + double chain plate | win screw + double chain plate | win screw + double chain plate |
